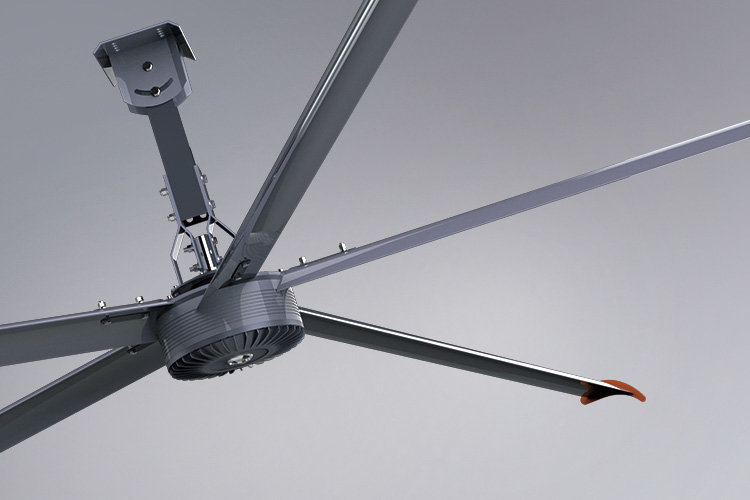

Industrial Ceiling Fan

Send Inquiry

Industrial Ceiling Fan adopts an efficient and reliable permanent magnet external rotor power design, high-strength aviation aluminum-magnesium alloy blades, and Diamond unique high-temperature resistant tail, which can effectively protect large space environments (workshops, shopping malls, halls, cattle raising Fields, etc.) to organize the indoor airflow, improve the ventilation effect, and enhance the comfort of the human body.

Fan Diameter Range: 3m(10ft), 3.7m(12ft), 4.3m(14ft), 5m(16ft), 6.1m(18ft), 6.7m(20ft), 7.3m(24ft)

PMSM Motor Range: 0.37kw, 0.75kw, 1.1kw and 1.5kw

Industrial Ceiling Fan is driven by IE5 Standard energy efficiency permanent magnet synchronous motor(PMSM). With 260N.m torque (the max torque of 468.8 N.m) it can help you to save more than 30% energy. The fan diameter is from 3M to 7.3M,1m-5m/s wind speed range,1700㎡coverage area, and free maintenance with 20-year service life. Our industrial ceiling fan solves the problem of ventilation and cooling in large spaces to improve comfort, safety, and productivity while reducing your costs.

Through Diamond self-developed intelligent control system, it can achieve the greatest energy-saving effect. It is suitable for installation on the ceiling of cement beams, I-beams, and square steel structures. Widely used in industrial plants, logistics warehouses, waiting rooms, exhibition halls, physical education halls, gyms, livestock farm and super tall space places. It can push a large amount of airflow to the ground, forming a certain height of the moving airflow layer, thus contributing to the overall air circulation. Like the natural breeze system, enjoy the intimate experience of natural wind.

Leave your contact detail now to get the latest price!

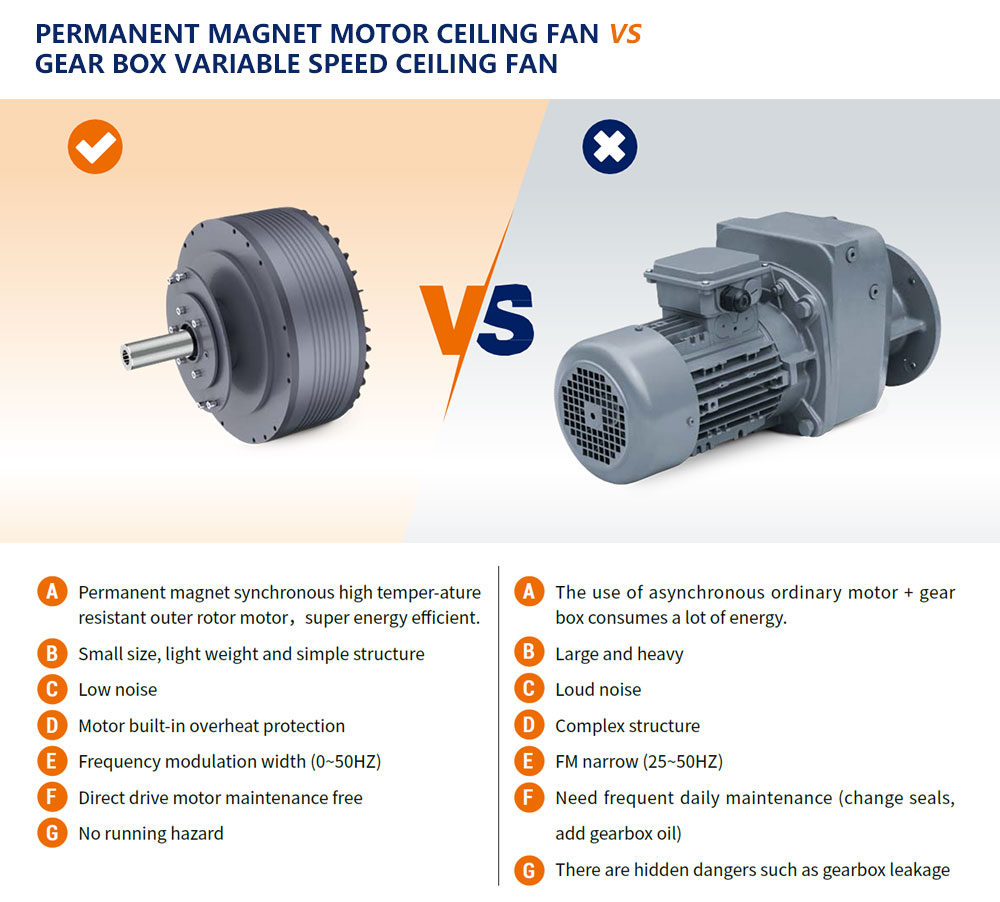

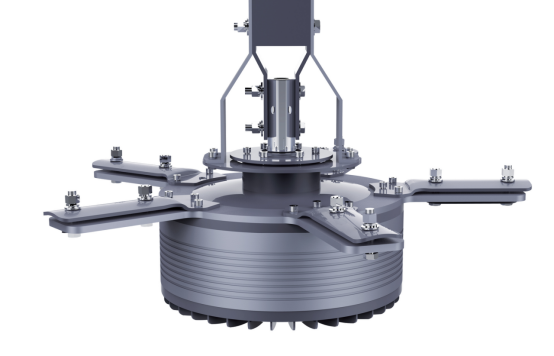

    Motor: PMSM (External Rotor Motor )
    1. Direct drive motor system, with its own EMU configuration, to achieve the ESC active control strategy+coordinated regenerative braking strategy, can satisfy any torque recovery or auxiliary breaking within the peak torque.
    2. Stronger: 260N.m torque, air volume increases more than 30%.
    3. Free maintenance, more cost-effective.
    4. Lower noise: less than 38db noise, more comfortable.
    5.

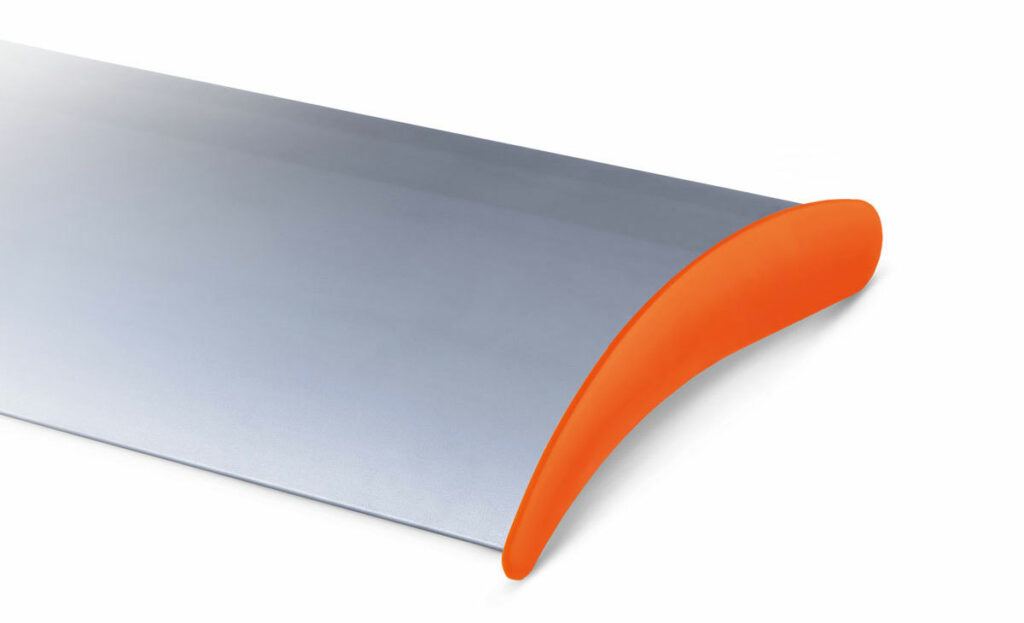

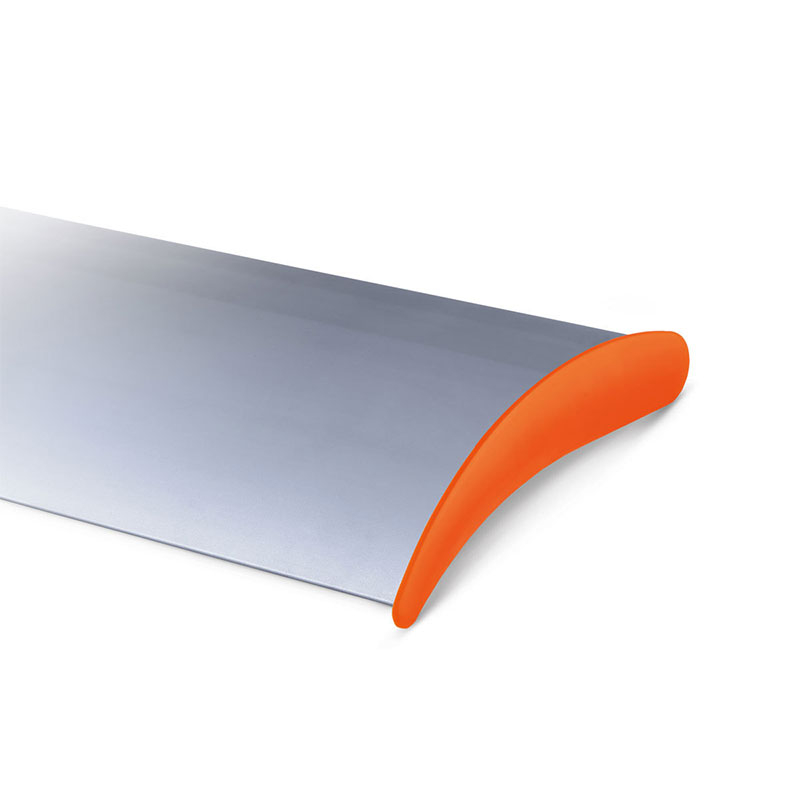

    Fan Blade: Aluminum and Magnesium Alloy Extruded and Stretched
    1. Airfoil blade+energy saving tail, high strength, good toughness, lightweight.
    2. T5+bright surface oxidation treatment enhances the corrosion and oxidation resistance.
    3. Tail: this can generate a vortex at the end of the aerofoil fan blade and eliminate this part of energy loss, stabilizing the fan operation.
      1.

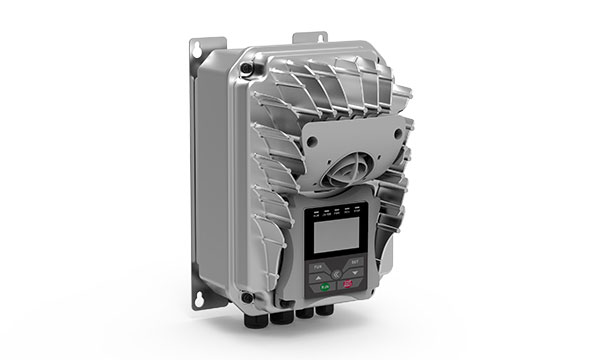

    Smart Control System: Unique Design No Position Vector Control
    1. Centralized control
    2. 4 buttons easy to operate (start, stop, speed up, slow down)
    3. IP66 can withstand high-temperature harsh environments
    4. Anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful unique appearance
    5. With over-voltage, under-voltage, voltage loss regulation, current, lack of phase, overload, collision, overheating, lightning, abnormal protection, etc.
    6.

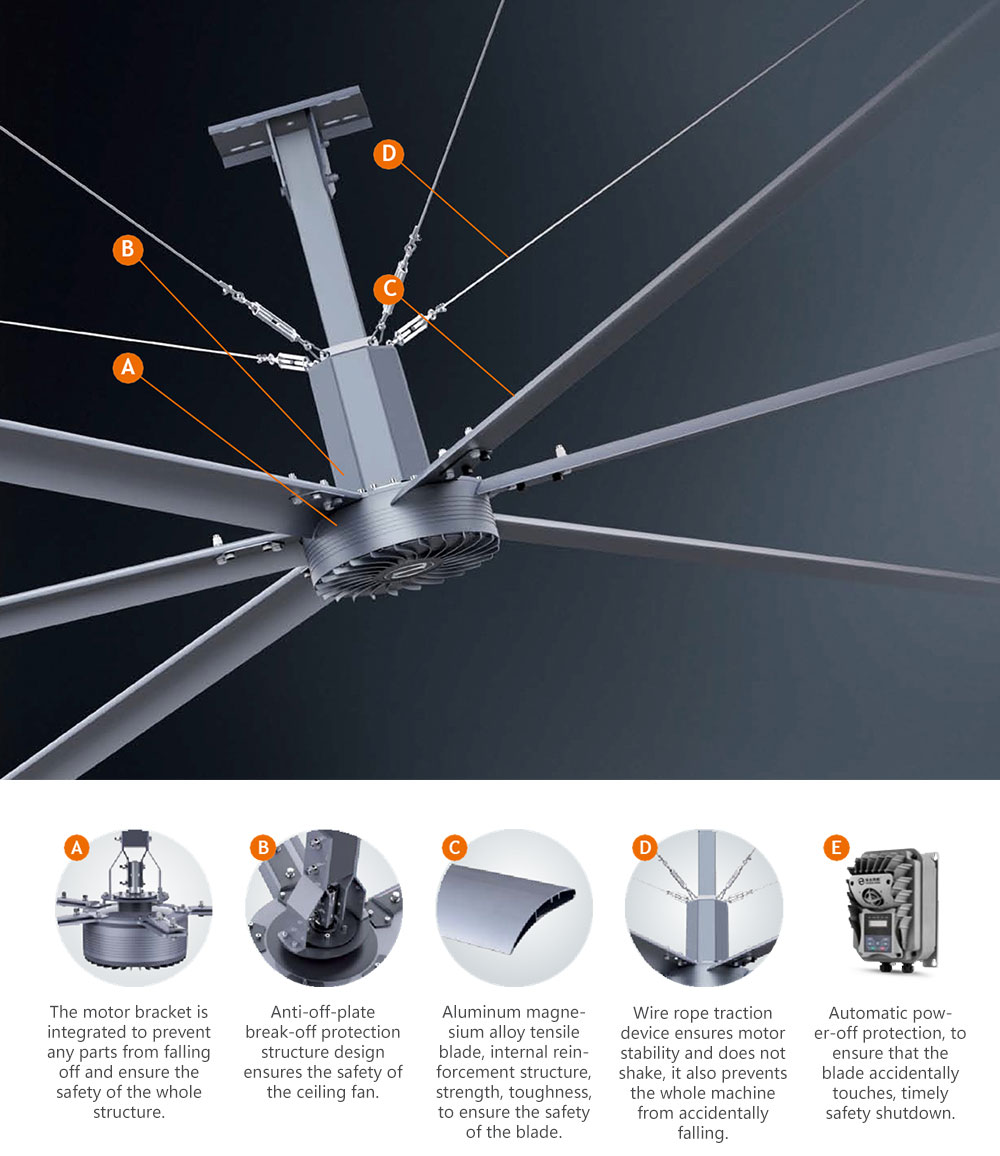

    Five Levels of Security Guarantee

    1. Integrated motor bracket to prevent any falling and ensure the safety
    2. Anti-off-plate break-off protection structure
    3. Tensile blade, lightweight, internal reinforcement structure to ensure the safety of the blade
    4. Wire rope traction device to ensure the stability and safety
    5. Automatic power-off protection, ensure accidental touch and timely safety shutdown
    6.

    Application

    • Large Logistics Warehouses and Distribution Centers: Improve air quality, dehumidify and cool down, and improve the working environment.
    • Large Workshops: workshops such as machining and automobile manufacturing can improve ventilation efficiency.
    • Public Buildings: such as shopping malls, auditoriums, airport stations, and other places with large crowds, promote air circulation, disperse odors, and create a comfortable public environment.
    • Large-Scale Farms: including cattle farms, feedlots, hatcheries, etc. Improve air quality, dehumidify, remove odors, and reduce livestock morbidity
    •

    Get Your Project Started Request a Quotation or Email us at info@fjdiamond.com

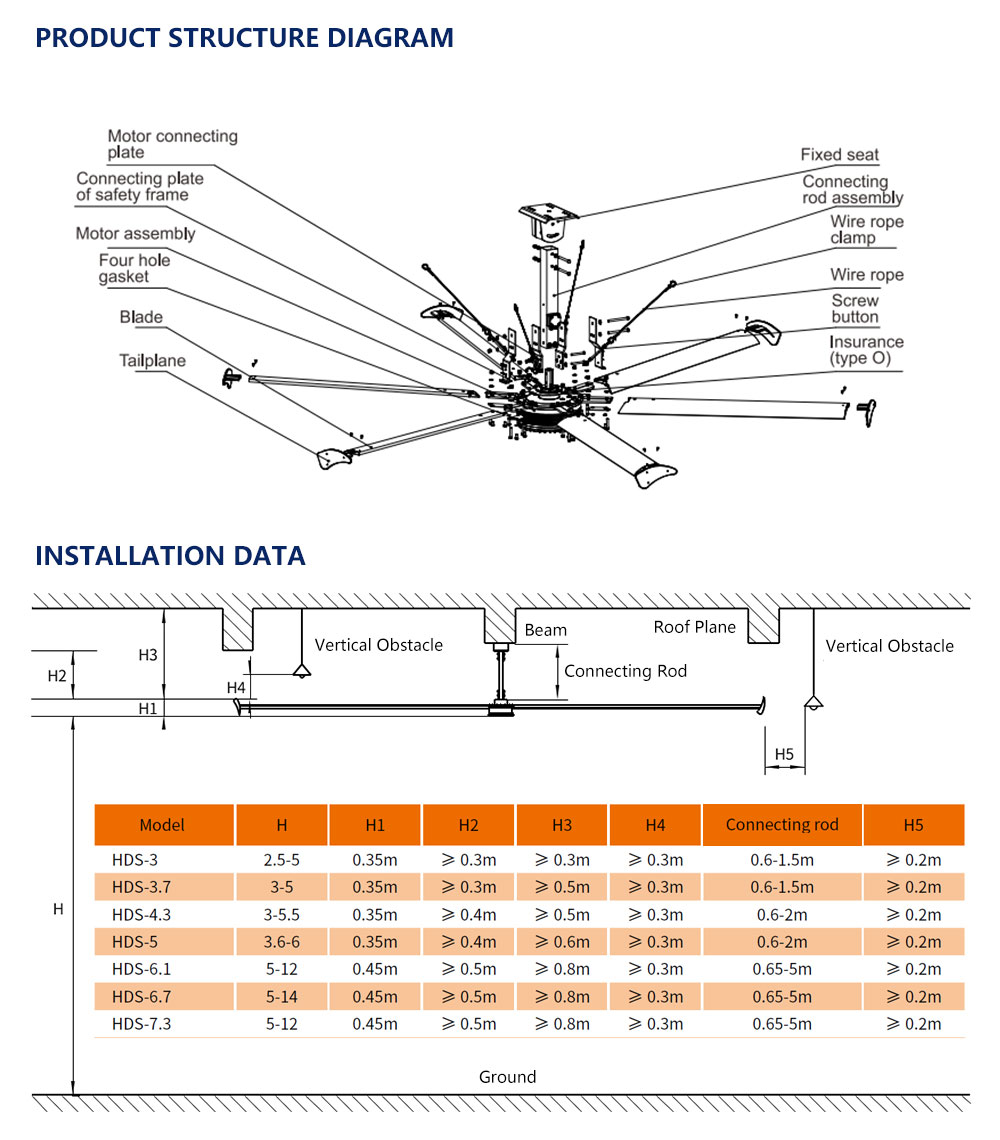

      Specification

      HVLS Ceiling Fan
      Model HDS-3.0 HDS-3.7 HDS-4.3 HDS-5.0 HDS-6.1 HDS-6.7 HDS-7.3 HDS-6.7 HDS-7.3
      Diameter 3m 3.7m 4.3m 5m 6.1m 6.7m 7.3m 6.7m 7.3m
      Power 0.37kw 0.37kw 0.75kw 0.75kw 1.1kw 1.1kw 1.1kw 1.5kw 1.5kw
      Voltage 220V/380V
      Frequency 50Hz/60Hz
      Air Volume (m³/min) 4000 5000 7000 10000 11500 12000 13000 14000 15000
      Speed ≤120rpm ≤100rpm ≤90rpm ≤80rpm ≤65rpm ≤60rpm ≤55rpm ≤65rpm ≤55rpm
      Blades 5pcs 5pcs 5pcs 5pcs 6pcs 6pcs 6pcs 6pcs 6pcs
      Blades Width 180mm 180mm 180mm 180mm 180mm 180mm 180mm 220mm 220mm
      Noise 38dB
      Weight 35kg 38kg 46kg 49kg 103kg 107kg 111kg 118kg 122kg
      Coverage Size 8-12m 9-14m 12-18m 12-20m 20-25m 20-28m 20-28m 20-35m 20-35m
      Effective Area 120㎡ 150㎡ 200㎡ 300㎡ 500㎡ 700㎡ 750㎡ 900㎡ 900㎡
      Above Ground 4-5m 4-5m 4-6m 5-6.5m 8-10m 7-12m 6-9m 8-14m 7-12m
      Protection Class IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP55
